Client Name
BPI
Date
17-12-2024
Client Location
Dumfries
Duration
2 days installation
Workers
Engineers Alan Hobson, John Moore
Job
Plastic recycling centre
Product / Title

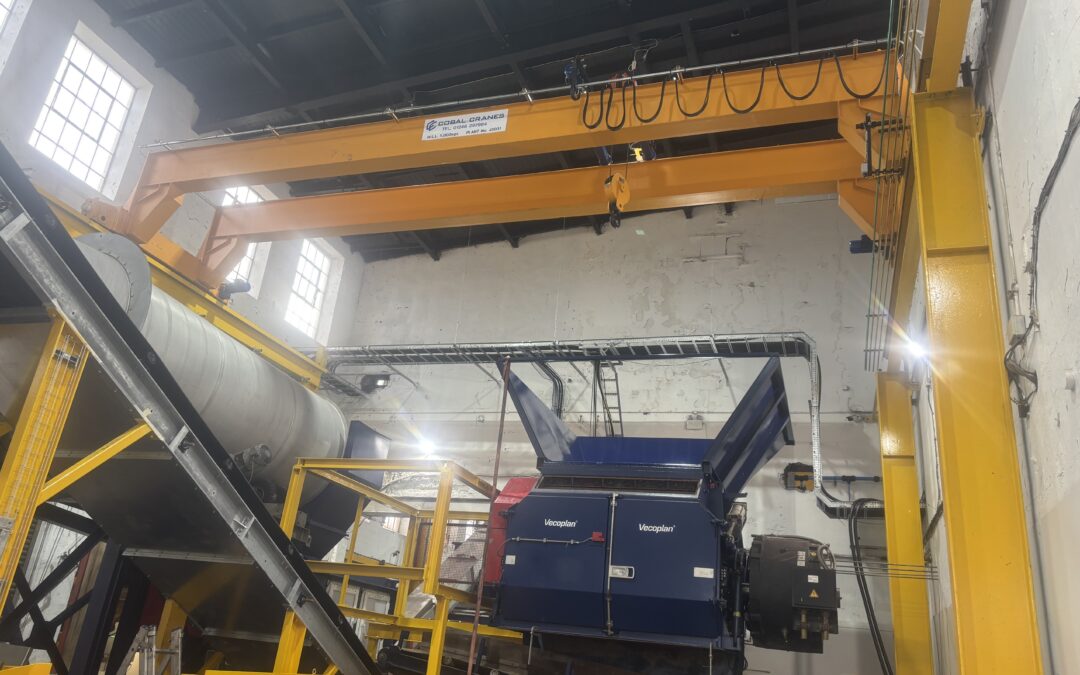

1 x Twin beam crane fitted with a Misia crab unit
Safe working load
5,000 kg
Span
10.9 meters
Manufacturer
Cobal
Crane Type
Double beam
Height of lift
8 metres
Hoist type
Wire rope Crab unit
Hoist speed
Dual
Cross travel
Dual
Long travel
Dual
Control
Radio C/W backup Pendant
Radio control
Yes
Environment
Indoor normal use
Finish
Yellow gloss to BSOE851
Steel work
Existing steelwork
Conductor System
The bus bar system that feeds the crane was 20 meters long and come complete with mounting brackets and one set of current carrying collectors. The system is a new four bar finger proof one.
Dispatch/Delivery/
Warranty Method: We were given 4 weeks to complete this. The original crane was removed, re-furbished with all new electrics, hoisting unit and wheel box drive units, raised up by 500mm and serviced prior to despatch. The delivery was brought forward by the customer by 1 week and was installed as requested,
Complications/
Time restraints imposed
