Client Name
M+P Engineering
Date
16th April 2026
Client Location
Manchester
Duration
4 days installation
Workers
Engineers John Moore, Robert Moore, Matthew Price
Job
Fabrication
Product / Title

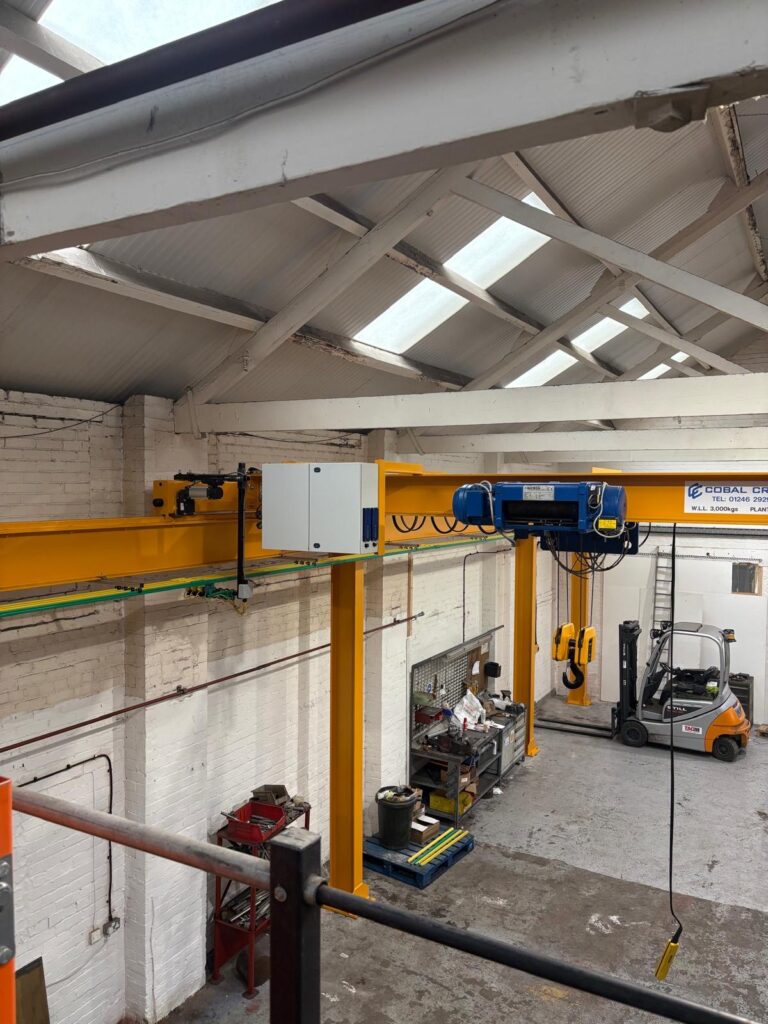

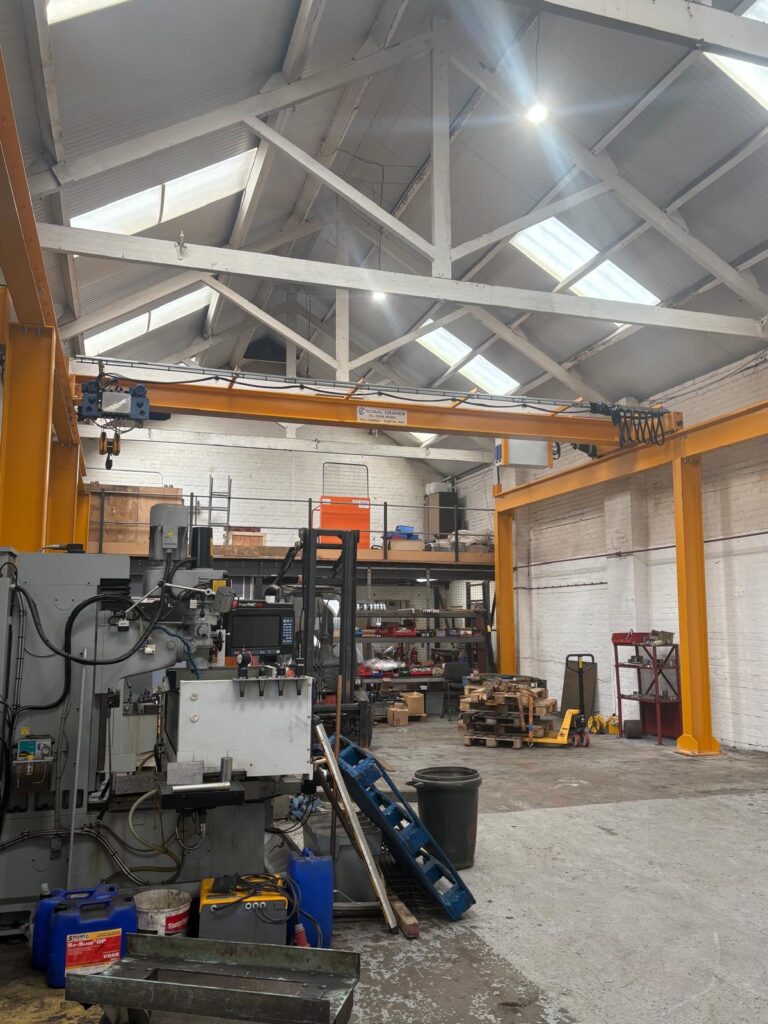

1 x Single beam crane fitted with a Misia hoist unit
Safe working load
3,000 kg
Span
8 meters
Manufacturer
Cobal Cranes
Crane Type
Single beam
Height of lift
3.5 metres
Hoist type
Wire rope hoist unit
Hoist speed
Dual
Cross travel speed
Dual (Inverted)
Long travel speed
Dual (Inverted)
Control
Pendant
Radio control
No
Environment
Indoor normal use
Finish
Yellow gloss to BSOE851
Steel work

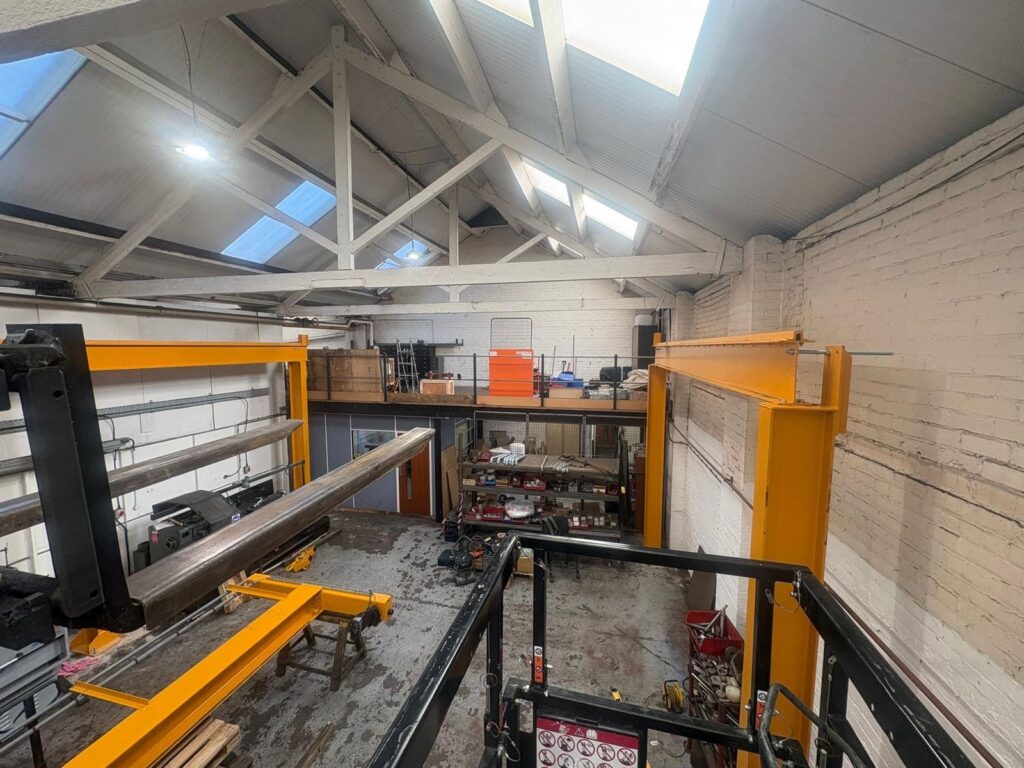

The steelwork consisted of 7 columns and 5 tracks at 5 – 7.5 metre bay centres giving the customer a total length of 15 metre track length
Conductor System
The bus bar system that feeds the crane was 15 meters long and come complete with mounting brackets and one set of current carrying collectors. The system is a new four bar finger proof one.
Dispatch/Delivery/
Was installed on the planned date as requested,
Complications/
Nil
Customer Feedback
E-Mail sent from site
Many thanks for the supply and install of our crane and gantry, it has sped up our production massively already.
