CASE STUDY TEMPLATE
Client Name
Bezwell fixings
Date
24-11-2025
Client Location
Sheffield
Duration
2 days installation
Workers
Engineers Alan Hobson, Callum Hague, Robert Moore
Job
Laser cutting
Product / Title

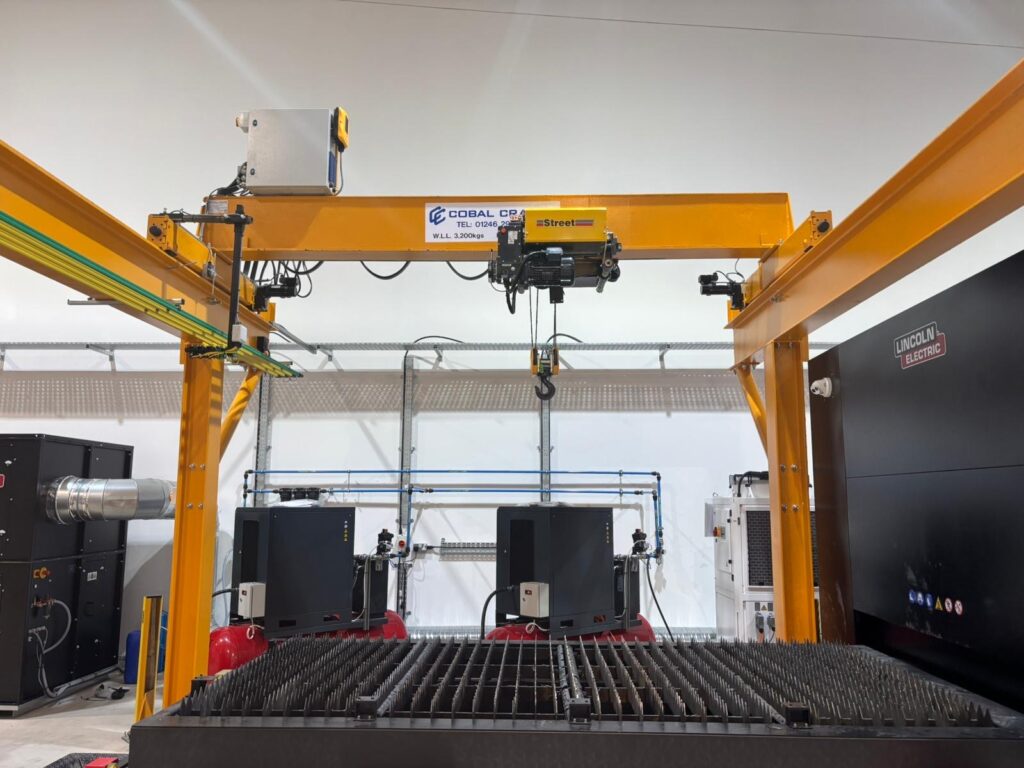

1 x Single beam crane fitted with a Street hoist unit
Safe working load
3,200 kg
Span
4.2 meters
Manufacturer
Cobal Cranes
Crane Type
Single beam
Height of lift
4 metres
Hoist type
Wire rope hoist unit
Hoist speed
Dual
Cross travel speed
Dual (Inverted)
Long travel speed
Dual (Inverted)
Control
Pendant
Radio control
No
Environment
Indoor normal use
Finish
Yellow gloss to BSOE851
Steel work

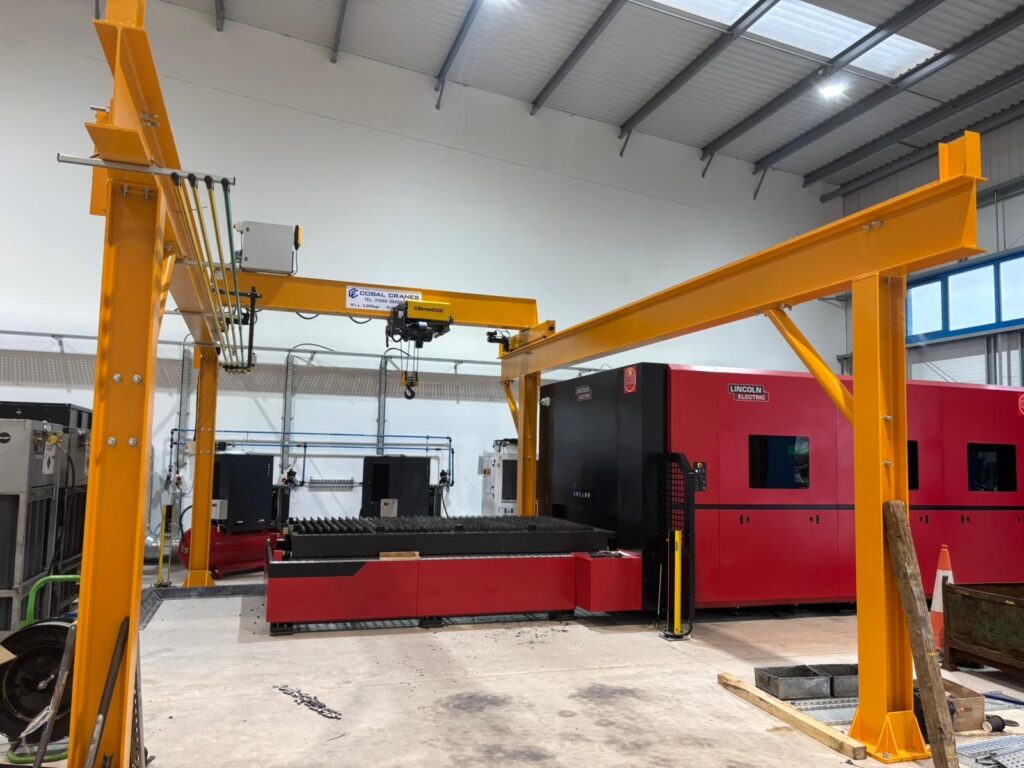

The steelwork consisted of 4 columns and 2 tracks at 4.5 metre bay centres giving the customer a total length of 4.5 metre track length
Conductor System
The bus bar system that feeds the crane was 4.5 meters long and come complete with mounting brackets and one set of current carrying collectors. The system is a new four bar finger proof one.
Dispatch/Delivery/
Was installed on the planned date as requested,
Complications/
Nil
Customer Feedback
Many thanks for the supply and install of our crane and gantry, it has sped up our production massively already.
