10 Tonne Overhead Crane & Steelworks Howdens UK

Client Name
Howdens UK

Date
30th May 2025

Client Location
Chesterfield

Product
1 x Tonne Overhead Crane WLL10,000 kg

Safe working load
10,000 kg

Span
24 meters

Manufacturer
Cobal Cranes Ltd

Crane Type
Double beam

Height of lift
4.5 metres

Hoist type
Abus Wire rope Crab unit

Hoist speed
Dual

Cross travel
Dual

Long travel
Dual

Control
110V

Radio control
Yes

Environment:
Indoor normal use

Finish
Yellow gloss to BSOE851

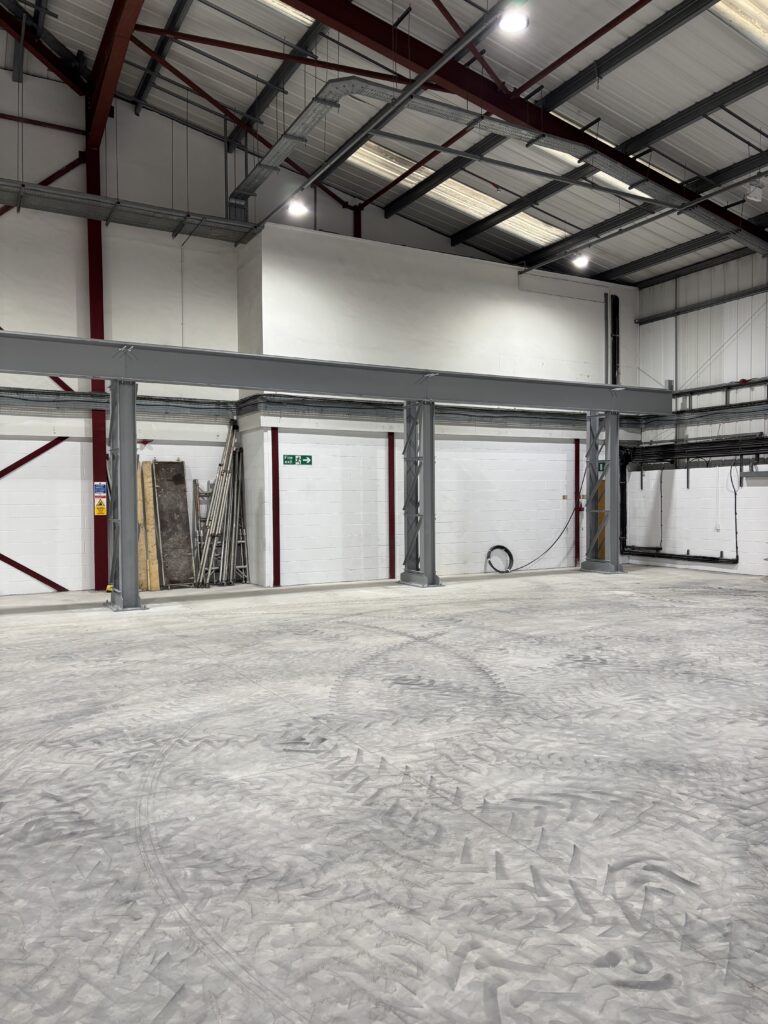

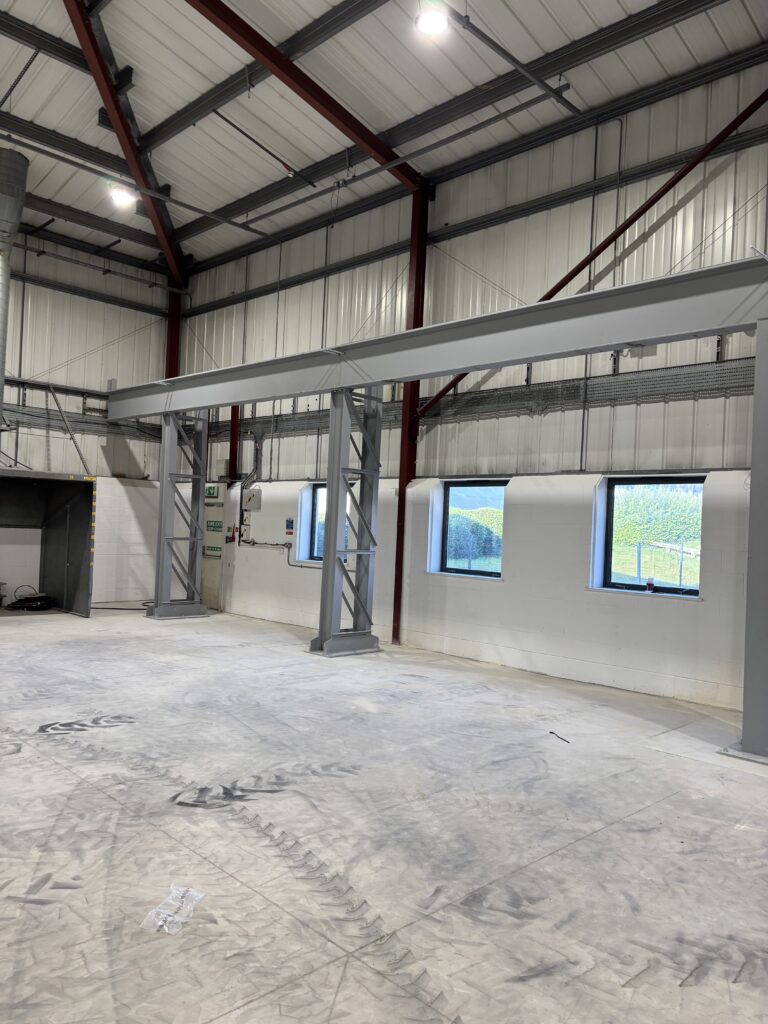

Steel work
Consisted of 12 support columns and 10 lengths of crane track giving a total gantry run of 33 meters with a 1mtr canter lever at each end of gantry. The tracks and columns were finished in one coat grey primer and installed onto foundations previously supplied by us.

Conductor System
The bus bar system that feeds the crane was 33 meters long and come complete with mounting brackets and collectors. The system is a new four bar finger proof one.

Dispatch/Delivery/
Warranty Method This crane was reconditioned and serviced prior to despatch.

Complications/
Solutions After initially installing the steelwork the customer decided that they wanted the tracks raising by approximately 500mm. This put the project back 2 weeks but was still successfully installed

Customer Feedback
Carl on site was great with nothing too much trouble for him, the whole team worked well together to achieve the final result
